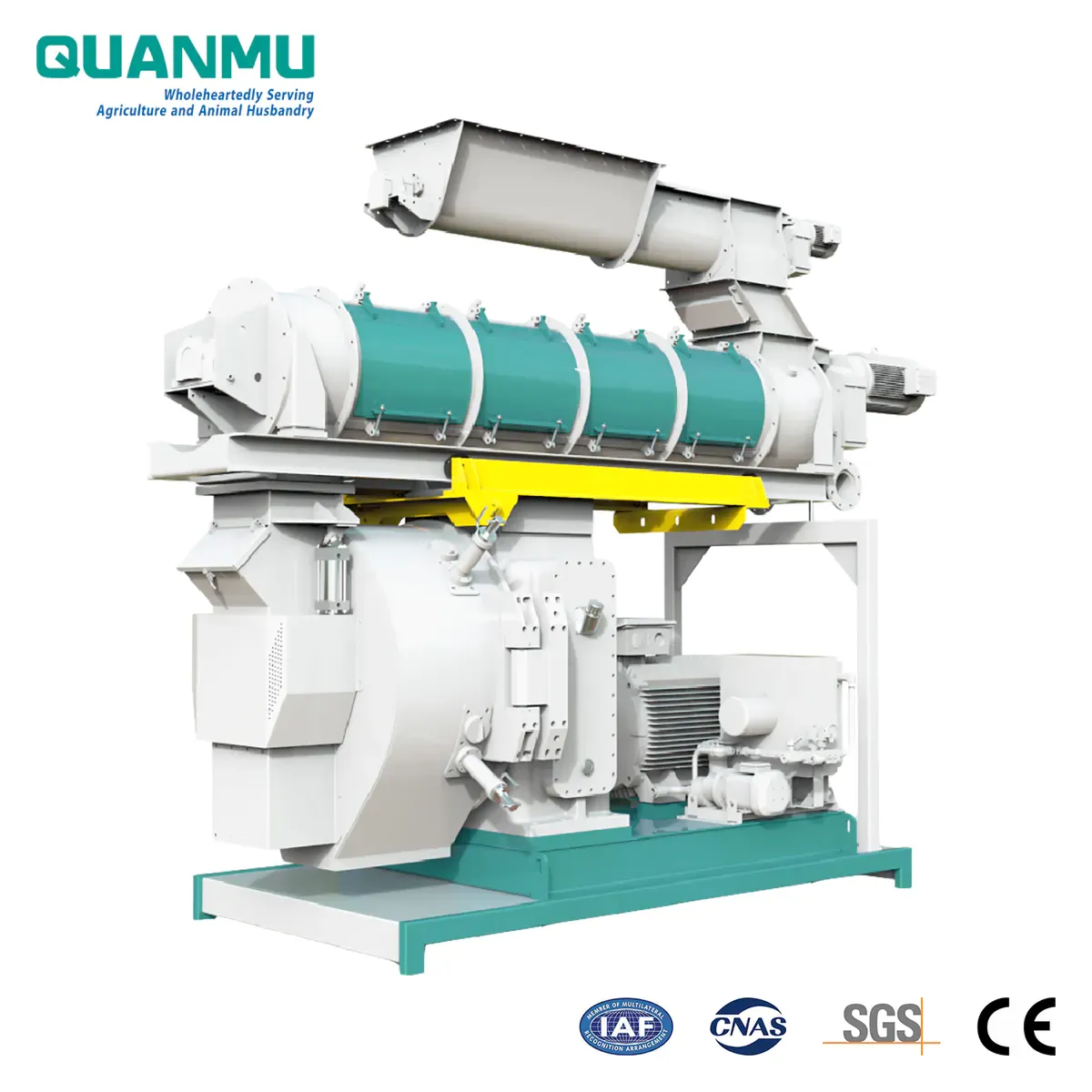

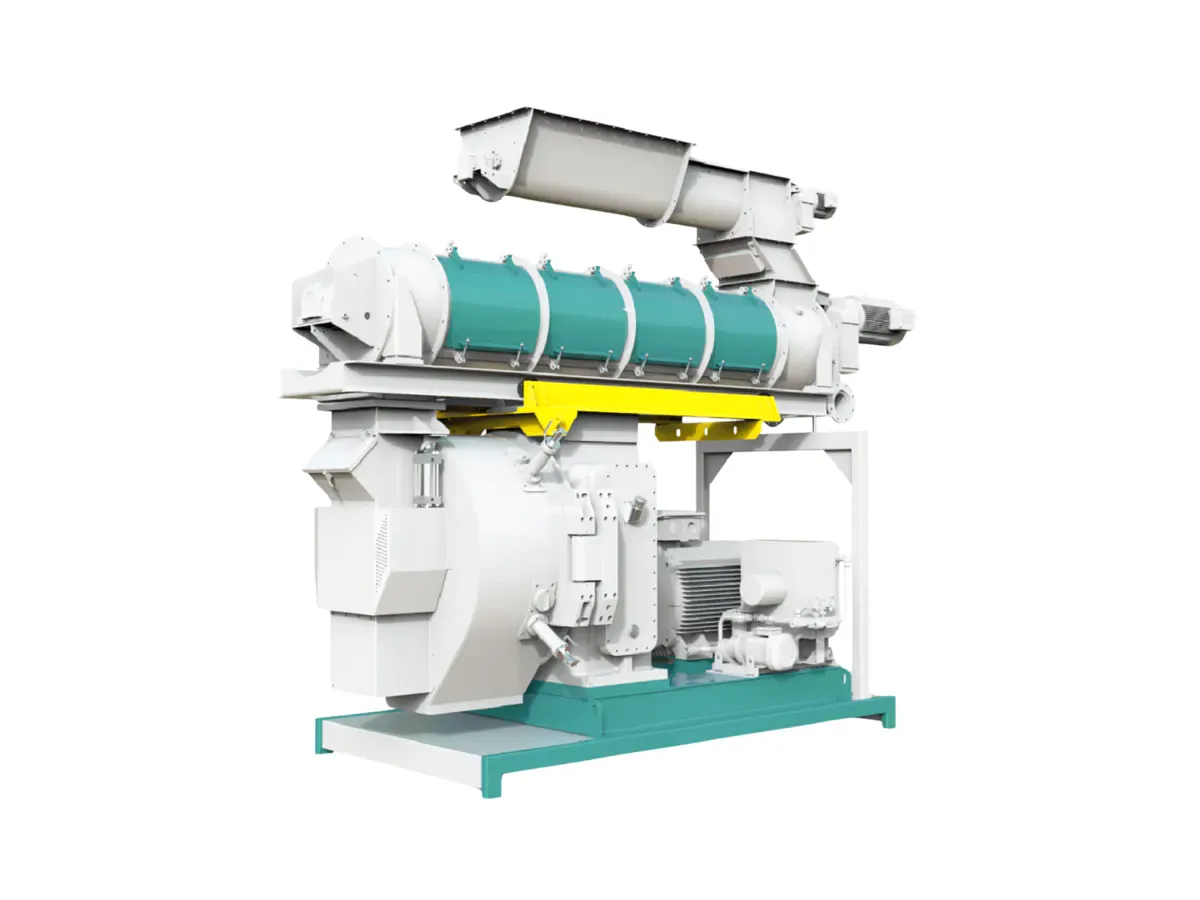

Pellet Mill

The SZLH pellet mill employs a high-precision, imported-brand gearbox to deliver efficient, reliable torque to the die. Fuzzy-logic control optimizes pelleting parameters, while an optimized feeder size/angle ensures uniform feed and stable load. Unique tools simplify die changing and roller adjustment to shorten maintenance windows. Optional oil-level monitoring warns the operator before gearbox lubrication drops. Magnetic iron removal protects gears; a reclaimer safety baffle prevents material/steam recoil; a safety-pin guard keeps fragments secure if a pin breaks.

Animal feed (livestock, poultry), Aqua feed. Suited to free-flowing, pelletizable formulas after proper conditioning and moisture/temperature control.

• Gear-drive reliability: High machining and installation precision for efficient transmission and stable output.
• Smart control: Fuzzy-logic controller reduces human variation and optimizes pelleting parameters.
• Fast maintenance: Unique die-change and roller-adjust tools reduce downtime.
• Optimized feeding: Feeder size/angle tuned for uniform feed, stable granulation and energy savings.
• Protection: Magnetic iron removal for gearbox, optional oil-level monitoring, reclaimer safety baffle, safety-pin guard.
• Operator safety: CE-minded protections (overload/door/gearbox safeguards, guards/hoods).

Precision gear transmission and protective systems minimize unplanned stops.

Stable feeding and optimized tooling deliver high TPH with consistent pellet durability.

Smart control plus quick die/roller tools simplify adjustments and changeovers.

Guarding, door protection and monitoring help ensure safe operation.

Robust drivetrain and preventive alerts (oil level, iron removal) reduce wear and service costs.

• Precision gear-drive main transmission
• Optimized feeder (size/angle) with conditioning interface
• Fuzzy-logic pelleting control
• Quick die-change and roller-adjustment tools
• Reclaimer safety baffle and safety-pin guard
• Magnetic iron removal for gearbox
• CE-minded guarding and door protection

• Oil-level monitoring for gearbox
• Gearbox cooler (model-dependent; see table)
• Stainless contact parts / sanitary execution
• Die/roller material & compression ratio packages
• Bearing temperature and vibration monitoring
• 50/60 Hz motor options, VFD for feeder/conditioner

535–575 die (15–25 TPH): Mid-scale livestock feed; compact footprint.

635–785 die (28–45 TPH): Core production lines with balanced energy and uptime.

885–1070 die (50–70 TPH): High-throughput centers; specify gearbox cooling and monitoring for long runs.

Use target TPH at the chosen die diameter and recipe; select die size and motor from the model table, then confirm with conditioner capacity and compression ratio.

Dedicated tooling and accessible layout shorten die/roller service, reducing downtime compared with conventional designs.

Door and overload protections, guarding, iron-removal for the gearbox and optional oil-level monitoring; gearbox cooling on most models.

Yes—specify dies and compression ratios suited to your species/formulas; rollers and feeders are adjustable.

Three-phase power (50/60 Hz), steam for conditioning, compressed air for pneumatics

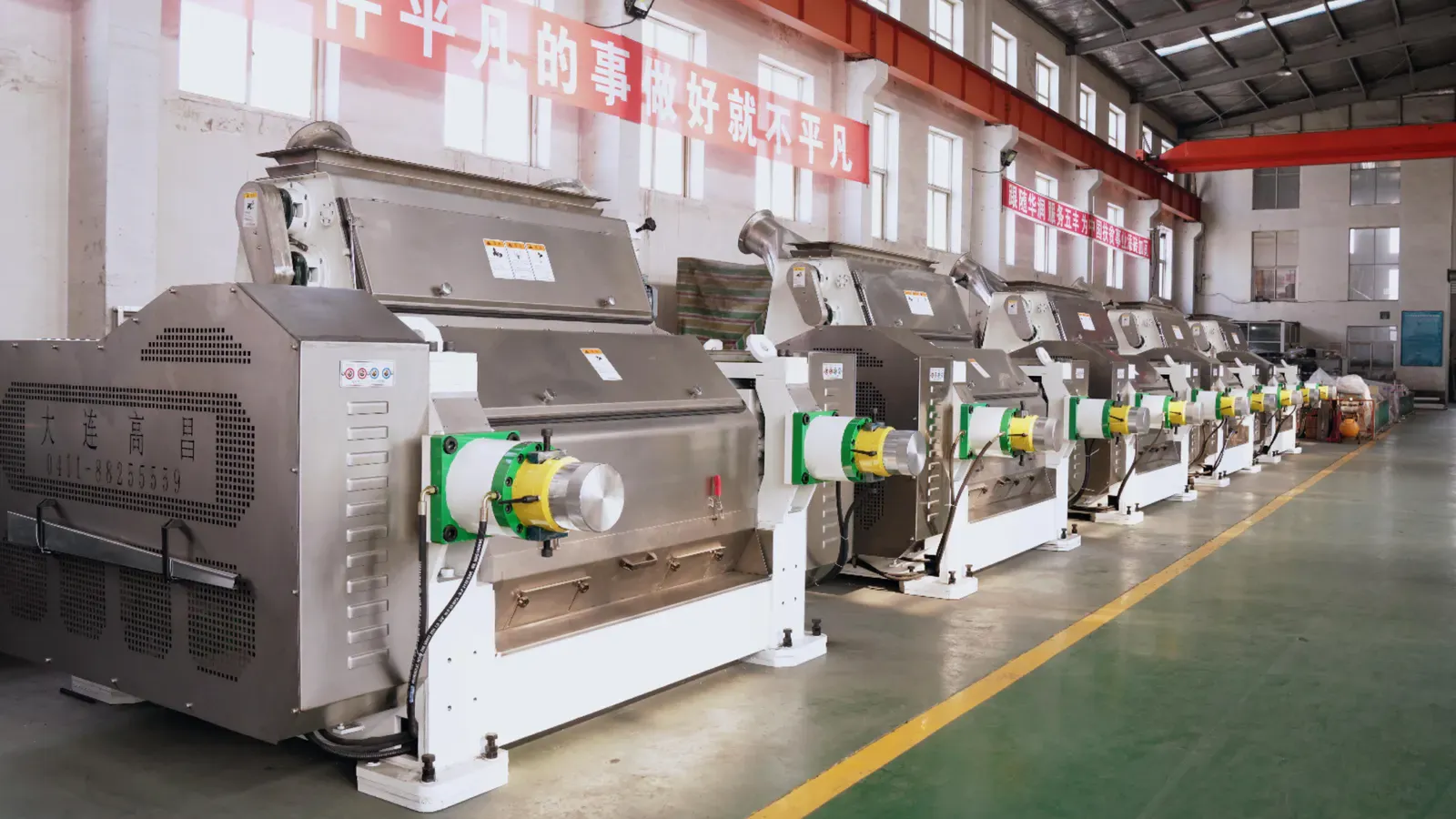

FC7175SF Corn Flaker Product Showcase + Core Configuration Specs
