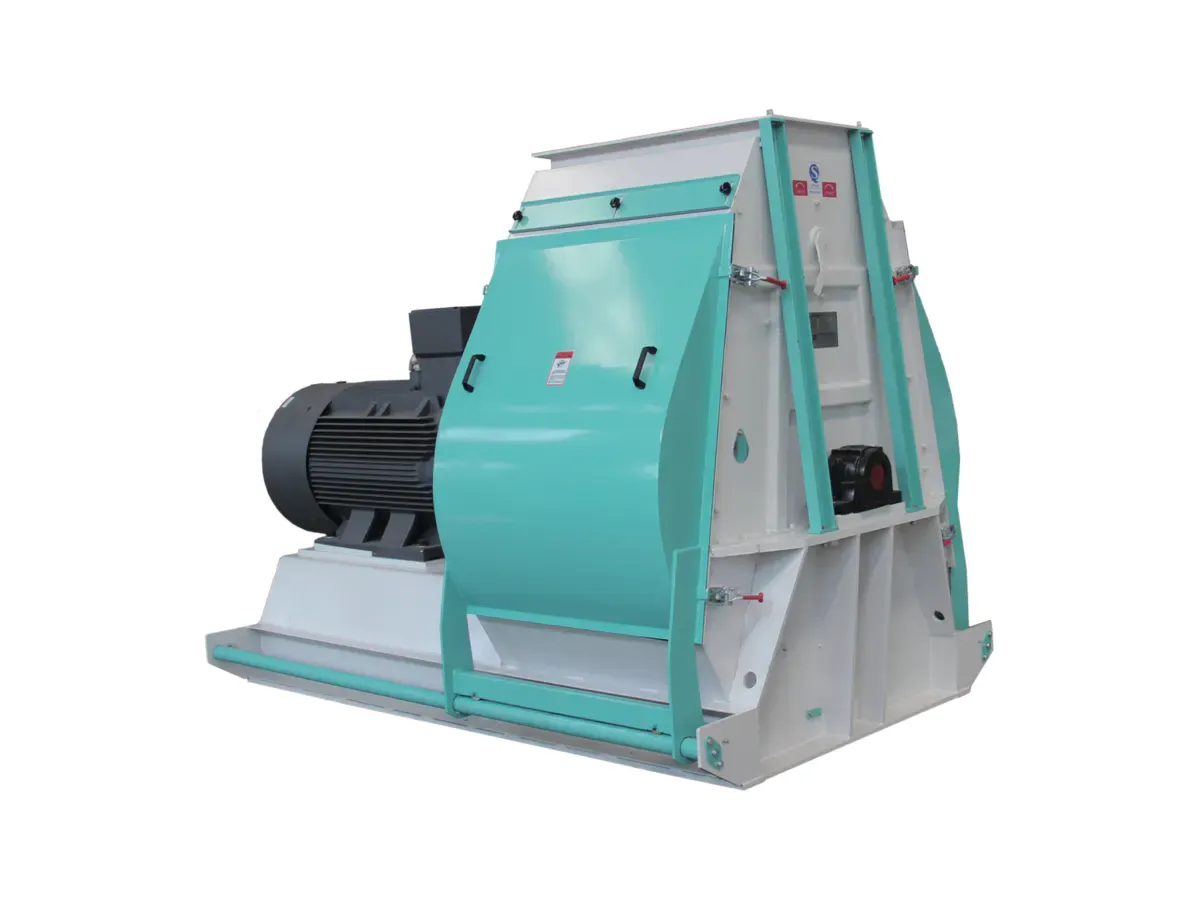

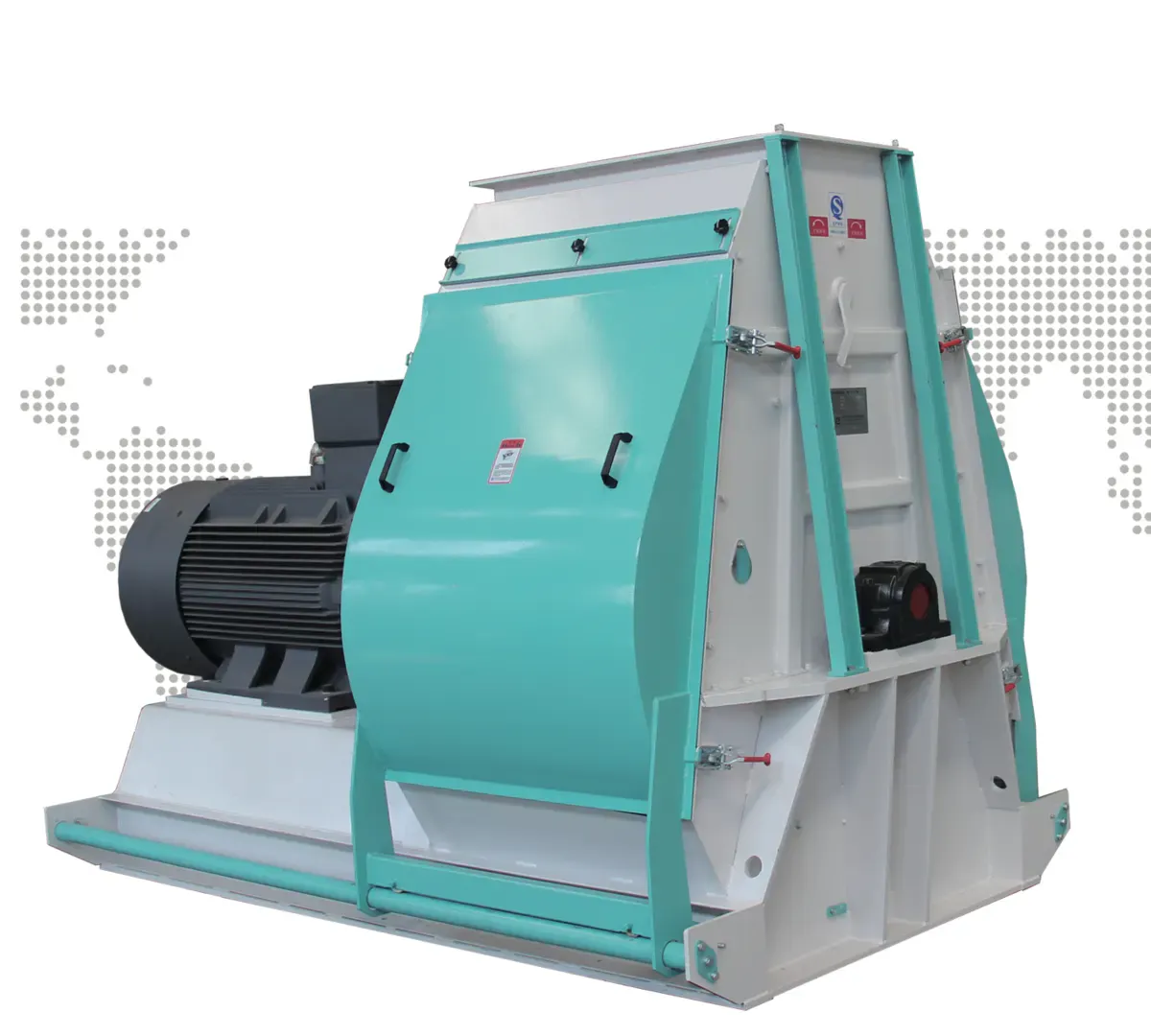

Hammer Mill

Material enters the water-drop chamber and is guided across slope-adjustable toothed plates for pre-grinding. The dynamically balanced, high-precision rotor drives consistent impact, while the reversible direction evens wear and extends service life. Optimized hammer layout and tight tolerances reduce vibration and noise. A patented one-step screen hold-down and full-size sliding access door simplify inspection and mesh changes; interlocks enhance operator safety. Adjustable hammer–screen clearance lets you tune for different raw materials and sieves.

Animal feed, Aqua feed, Pet food, Grain processing, Oil processing, Brewing. Materials include Corn, Wheat, Sorghum, Oats, Durum wheat, Paddy, Beans, and crushed cakes.

• Water-drop grinding chamber + W-shaped second-pass structure increases effective grinding surface (capacity gain up to 25%).
• Dynamically balanced high-precision rotor; optimized hammer layout for low vibration & noise.
• Reversible rotation extends wear-part life and keeps particle size consistent.
• Slope-adjustable toothed plates boost pre-grind on hard cereals (corn, wheat).
• Patented one-step screen hold-down and full-open sliding door for fast, safe mesh changes.
• Interlock protection and wide access for friendly, CE-minded operation.

Enlarged chamber, secondary grinding path and toothed pre-grind plates deliver more tons per hour with lower recirculation.

Precision balancing, reversible rotor and high-hardness hammers reduce vibration and extend service intervals.

One-step screen clamping, big sliding door and door interlocks make maintenance faster and safer.

Adjustable hammer–screen gap and sieve options cover pre- and post-grinding across species diets.

Heavy-duty welded housing; stainless contact parts optional for corrosive applications

• Water-drop grinding chamber with W-type secondary path
• Dynamically balanced rotor; reversible rotation
• Slope-adjustable toothed pre-grind plates
• One-step screen hold-down; fast screen segment change
• Full-size sliding access door with safety interlock
• Hammer–screen gap adjustment
• Feed guiding mechanism and rigid base

• Magnetic separator at inlet and self-cleaning aspiration
• VFD for feeder/aspiration fan
• Stainless steel contact parts or wear-liner kits
• Bearing temperature & vibration monitoring
• ATEX/NFPA packages and spark detection

132×36 (Small lines): 6–12 t/h wheat / 8–13 t/h corn; ideal for specialty or starter lines.

132×65 (Mainstream): 14–28 t/h wheat / 18–34 t/h corn; the most common choice for mid- to high-throughput feeds.

132×102 (Centralized): 25–32 t/h wheat / 32–40 t/h corn; suited to high-capacity pre-grind before batching.

Start from required t/h at the intended sieve size and moisture. Use our table to shortlist a width, then match motor power to your raw materials and aspiration volume.

Choose by downstream process (e.g., pelleting). Smaller sieves increase energy and reduce capacity; larger sieves raise throughput with coarser PSD.

Run correct tip speed, keep rotor dynamically balanced, reverse rotation periodically, and maintain the hammer–screen gap per material.

Yes. The one-step hold-down mechanism and full-open sliding door with interlock enable quick, tool-light changes and safer access.

Yes. Slope-adjustable toothed plates pre-condition hard cereals (corn, wheat) to raise efficiency; select proper hammers and sieve alloy for abrasive loads.
