Steam Flaked Corn Production Line Upgrade 130–200 tpd Sunlon

Steam Flaked Corn Production Line Upgrade 130–200 tpd Sunlon

Bellaex offers Steam Flaked corn solutions for upgrading, retrofitting, and maintenance of flaking corn production lines, helping clients to boost their production capacity to 200 tons per day (TPD).

Client Introduction

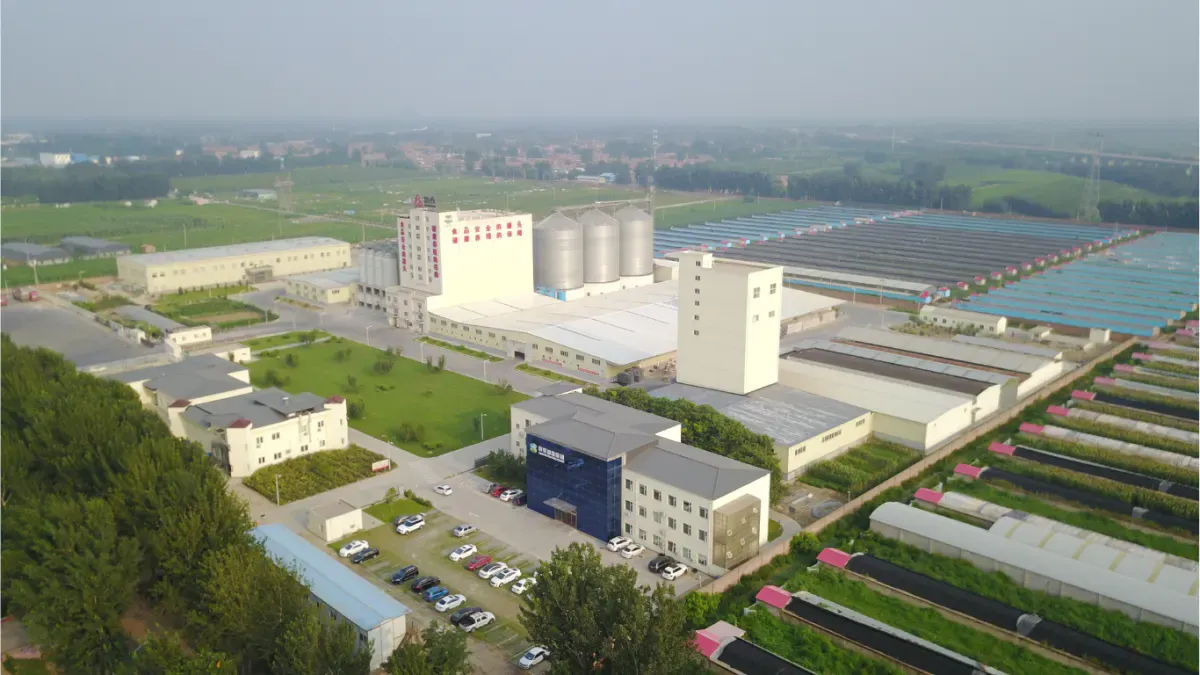

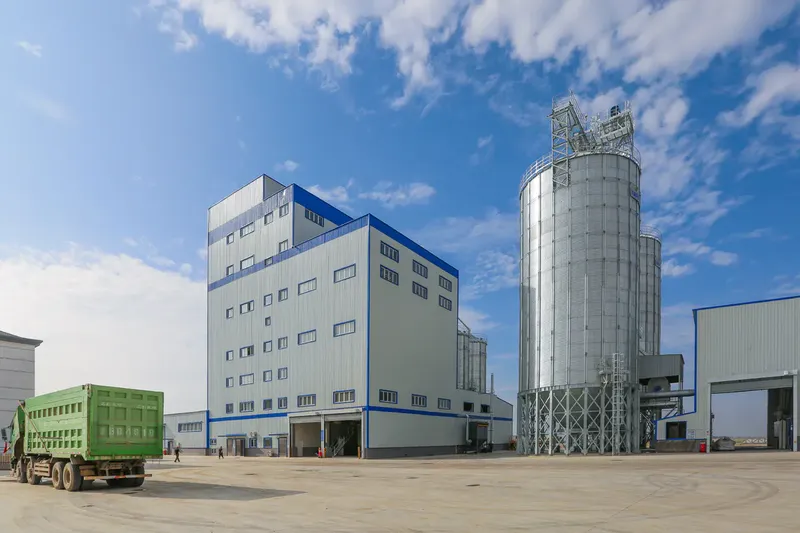

Beijing Sunlon Food Group Co., Ltd. is a Beijing-based state-owned enterprise formed in December 2017 by reorganizing three municipal groups. In December 2018, Sunlon was approved as a state-owned capital investment company, with nearly 60,000 employees and 500+ affiliated enterprises.

specific information

Solution Overview

Scope focused on steam-flaked corn: upgrading tempering, conditioning, flaking, and drying/cooling. Key moves included introducing a German Vibronet tempering machine to shorten soaking from ~18 hours to ~4, and replacing legacy conditioning towers and dryers with Bellaex 8.5 TPH units together with FC7150SF flaking mills—phasing out prior imported equipment. The result: higher, steadier throughput and lower operating cost around 200 TPD. (Vibronet 18→4 h; equipment changes and 8.5 TPH per case source.)

Implementation / Timeline & Results

2015–2020 — Reliability first. Bellaex supplied high-performance flaking rollers, upgraded hydraulic pump stations, and provided maintenance to stabilize output.

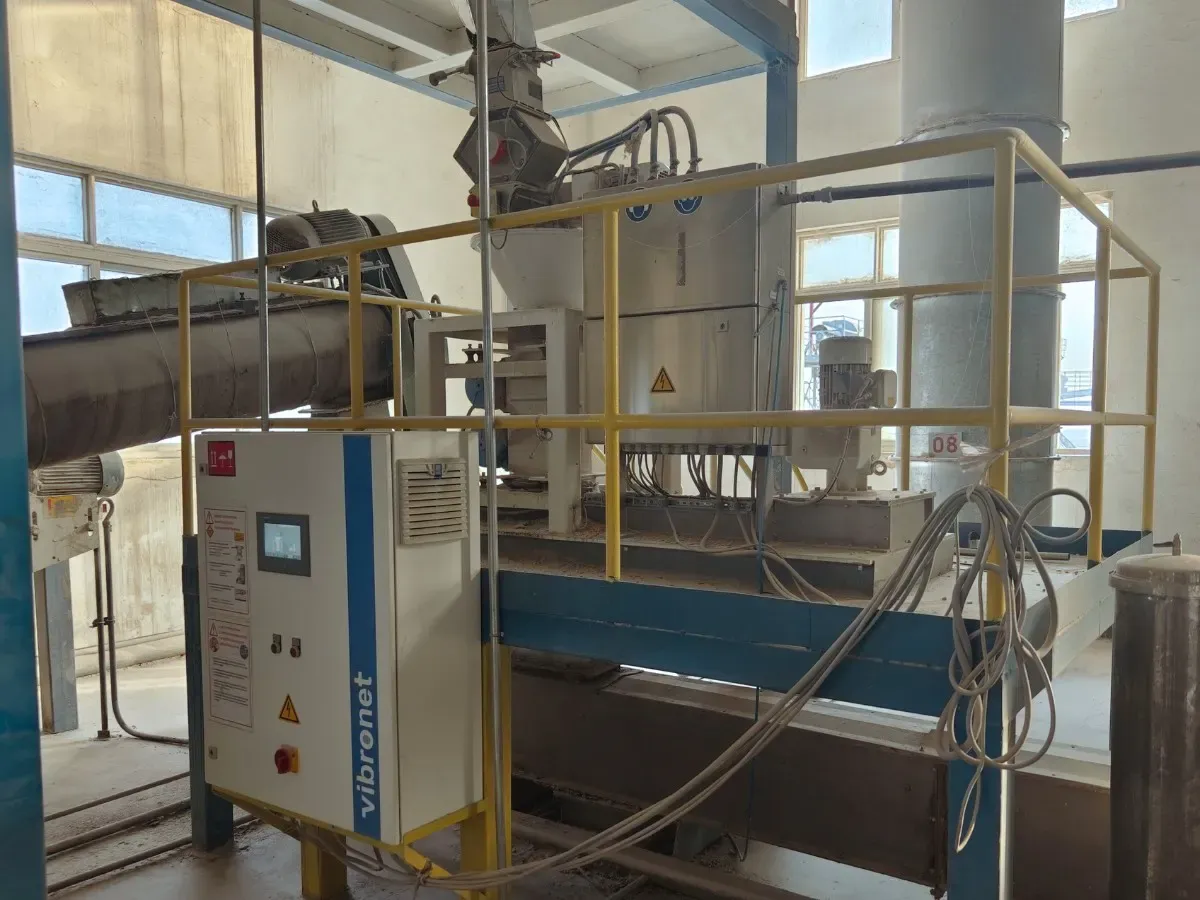

2018 — Process upgrade. Watering/tempering modernized with a German Vibronet tempering machine to accelerate moisture uptake and shorten soak time (≈18 h → ≈4 h).
2021 — Three-month retrofit. Conditioning towers and dryers replaced with Bellaex 8.5 TPH units; FC7150SF flakers installed. Commissioning lifted capacity to about 8.5 TPH (≈200 TPD); subsequent runs reached up to 10 TPH.
Outcome — Capacity gain. The line increased from roughly 130 TPD to ~200 TPD with improved stability and serviceability.

Scope / What We Do

Roll supply and changeover for flakers; on-line inspection and preventive maintenance schedules.
Hydraulic pump station upgrades and tuning for uniform nip pressure and safer operation.
Replacement of legacy conditioning towers and dryers with Bellaex 8.5 TPH equipment, including controls integration.
Installation of FC7150SF corn flaking mills with commissioning and operator training.
Process upgrade to German Vibronet tempering to reduce soak time (~18 h → ~4 h).
Ramp-up support to stabilize at ~200 TPD with targeted optimization and after-sales service.
