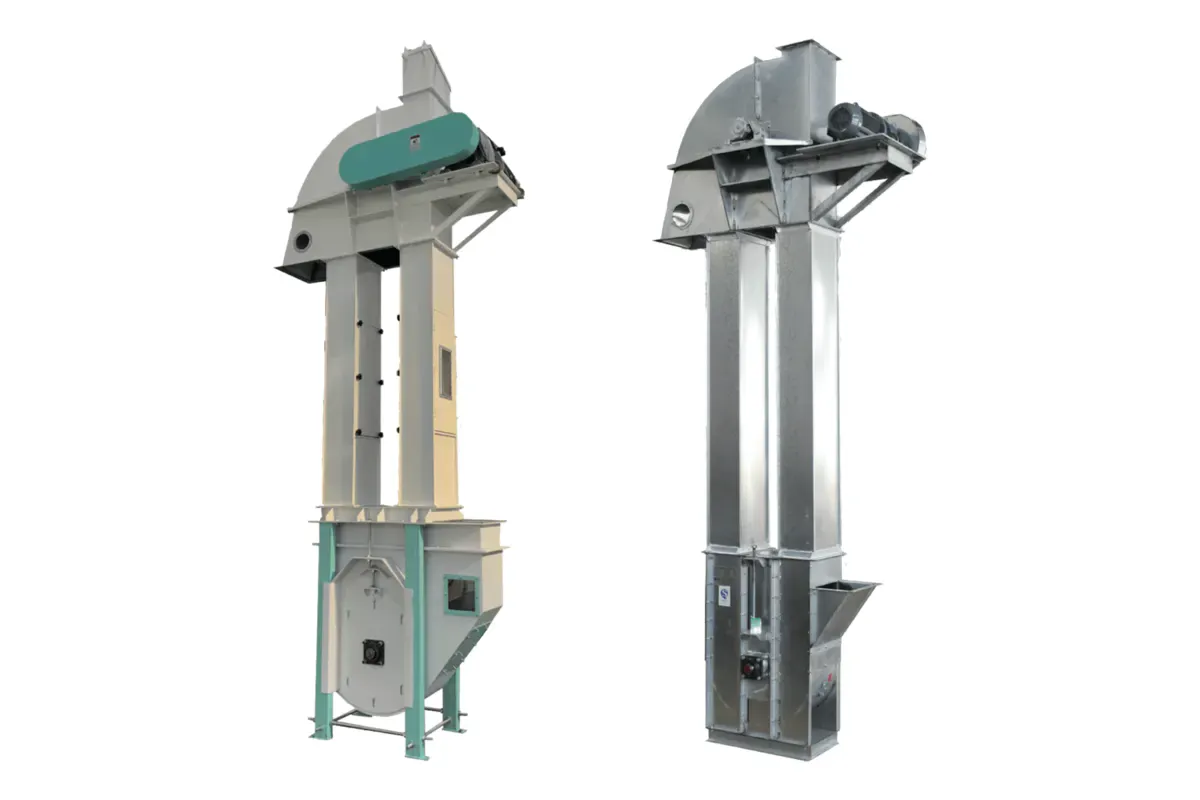

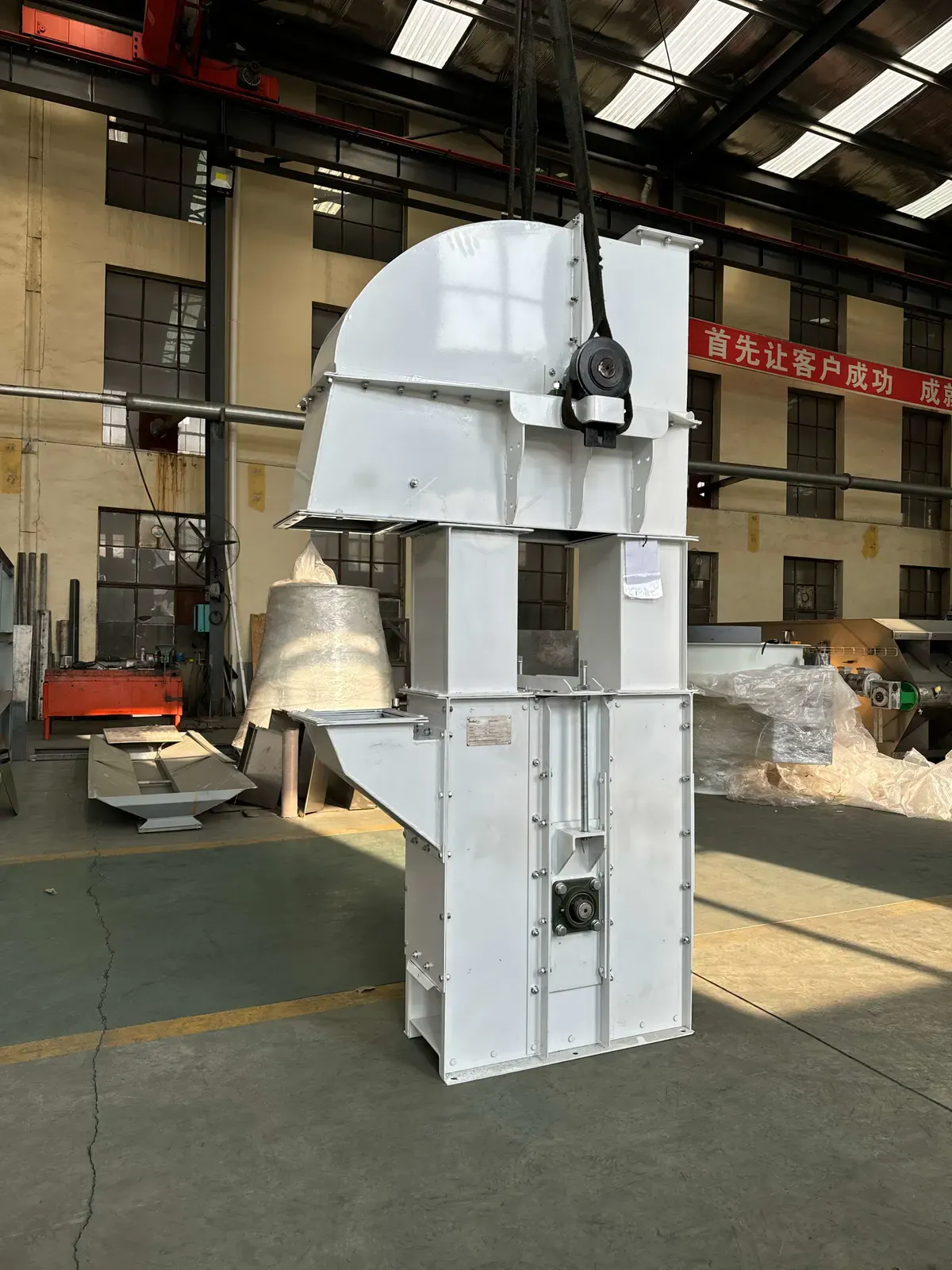

Bucket Elevator for Feed Mills: Low Dust & Hygienic Handling
Why dust control and hygiene are hard in vertical conveying
- Uncontrolled transfer points that release fine particles during loading and discharge
- Backflow and fallback inside the casing that re-circulates material and re-generates dust
- Poor inspection and cleanout access, which makes “clean enough” take longer than planned
Design features that reduce dust and support hygienic operation
Enclosed casing to minimize dust escape
Stable loading and discharge to reduce backflow and spillage
Maintenance access that makes cleaning faster
- Removable top covers
- Dual inspection doors
- A structure designed to support faster inspection and cleaning work
Material/contact options for cleaner handling (project-based)
Performance range (so you can plan capacity without oversizing)
- Capacity: up to 650 TPH (application dependent)
- Lift height: standard units typically ≤ 40 m; engineered high head up to 65 m (on request)
Reliability, monitoring, and dust-risk options
- Speed / zero-speed monitoring
- Belt misalignment sensors
- Bearing temperature and vibration sensors
- Boot level indicators
- Backstop (anti-reversal) device to prevent rollback on sudden stops
Quick selection guide: belt vs. chain; centrifugal vs. continuous
- A belt system often fits many feed mill applications where you want efficient, stable conveying for grains and powders.
- A chain system is typically preferred for higher temperature demands, heavier impact, severe abrasion, or very tall lifts.
- Centrifugal designs run faster and “throw” material for higher throughput.
- Continuous designs run slower with closely spaced buckets for gentler handling and reduced degradation.
Material suitability (avoid plugging and hygiene issues)
What you should send for a feed mill configuration proposal
- Material type(s) and moisture/temperature behavior
- Required capacity (TPH) and duty cycle
- Lift height and layout constraints
- Inlet/outlet direction preferences and dust control expectations
- Monitoring/safety options you want to include
About Bellaex (source factory support you can rely on)
